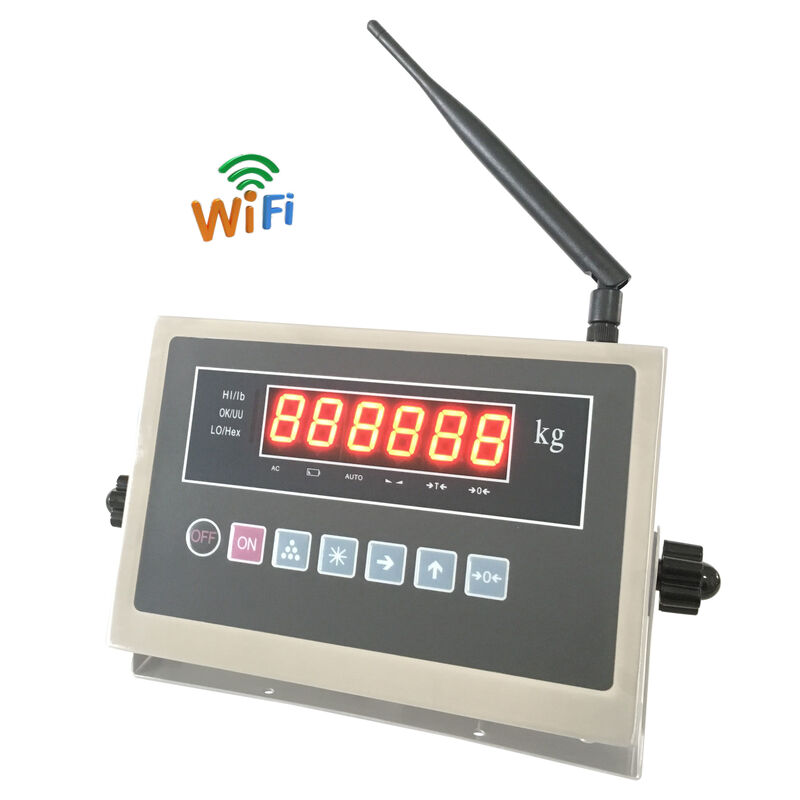

WiFi-Enabled Digital Indicator BXK315A1RB-W – TCP/IP Connectivity

Features

• 1. This advanced weighing indicator is built for operation from 0°C to 40°C.

  2. The indicator ensures safe storage in temperatures ranging from -25°C to 55°C.

  3. Engineered for resilience, this weighing indicator tolerates relative humidity up to 85% non-condensing.

  4. Designed for mobility, the indicator provides up to 30 hours of use on a full battery charge.

  5. This versatile weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

  6. Flexible data management is offered through manual and automatic accumulation on this indicator.

  7. Long-term accuracy is secured by the programmable zero tracking function of the weighing indicator.

  8. The indicator features a programmable digital filter for superior signal stability.

  9. User convenience is enhanced with selectable kg and lb units on this weighing indicator.

  10. Specialized applications like animal weighing are fully supported by this indicator.

  11. A practical hold function on the weighing indicator allows for stable reading capture.

  12. Efficient parts management is facilitated by the counting function of this indicator.

  13. As a TCP/IP weighing indicator, it features integrated WiFi for WAN/LAN connectivity.

  14. This smart weighing indicator uses the Modbus ASCII protocol for flexible unidirectional or bidirectional communication.




Dimensions(mm)

265×162×58mm
