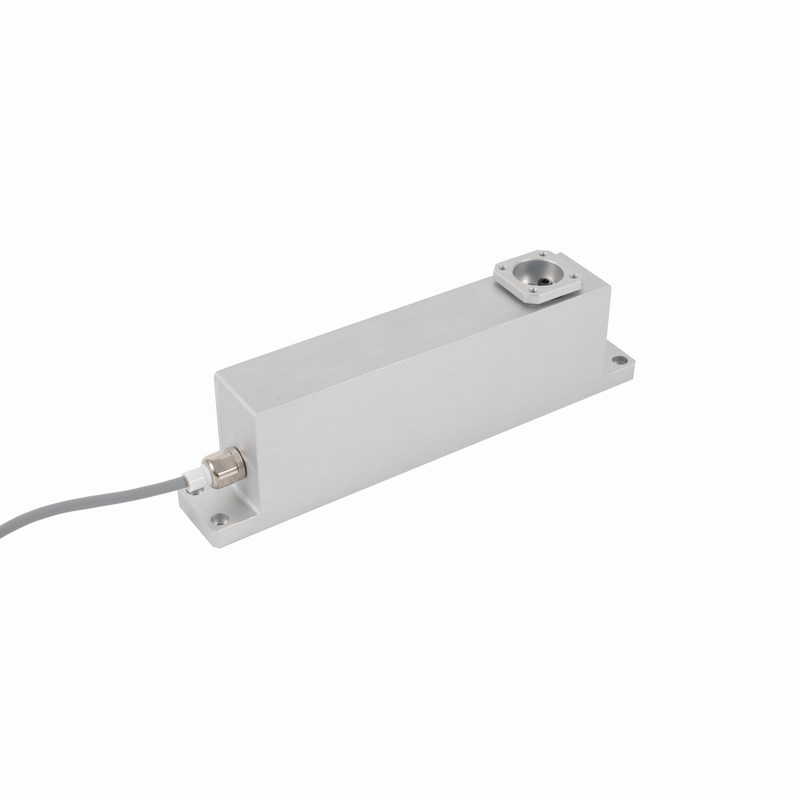

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Name: WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WLSM-132
Price: 25.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: Brans

شماره مدل: WLSM-132

سند: WLSM-132 High Accuracy Load...NS.pdf

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 عدد کامپیوتر

زمان تحویل: یک هفته

شرایط پرداخت: T/T

قابلیت ارائه: 800 عدد در ماه

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                                                                                compact single point load cell,single point load cell with overload protection,easy installation single point load cell, single point load cell with overload protection, easy installation single point load cell


ظرفیت:	30g/50g/100g/300g /500g/1kg/2kg	خطای ترکیبی:	≤0.005% FS
غیر خطی:	≤0.005% FS	تکرارپذیری:	≤0.005% FS
خروجی رتبه بندی شده:	1.0mV/V	تعادل صفر:	±0.05mV/V
مقاومت عایق:	5000mmΩ/100VDC	مواد:	آلیاژ آلومینیوم
اضافه بار ایمن:	150% FS	کلاس حفاظت:	IP66 (قابل تنظیم)
عملیات دما:	-30 تا 80 درجه	اندازه کابل:	Ф3.2x4000mm (قابل تنظیم)

ظرفیت:	30g/50g/100g/300g /500g/1kg/2kg
خطای ترکیبی:	≤0.005% FS
غیر خطی:	≤0.005% FS
تکرارپذیری:	≤0.005% FS
خروجی رتبه بندی شده:	1.0mV/V
تعادل صفر:	±0.05mV/V
مقاومت عایق:	5000mmΩ/100VDC
مواد:	آلیاژ آلومینیوم
اضافه بار ایمن:	150% FS
کلاس حفاظت:	IP66 (قابل تنظیم)
عملیات دما:	-30 تا 80 درجه
اندازه کابل:	Ф3.2x4000mm (قابل تنظیم)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Features & Applications

1. The WLSM-132 features a compact, easy-to-install Single Point Load Cell with integrated overload protection for reliable operation.
2. Engineered for exceptional accuracy, this single point load cell delivers high precision with mg-level resolution.
3. Offering strong stability, it is the best choice for micro-volume, high-precision weighing, making it an ideal single-point load cell for critical applications.
4. This high-stability load cell is mainly used for batching, filling, and production quality control in micro-dispensing, medicine, cosmetics, food packaging, and other small packages.

Specifications

Capacity	30g/50g/100g/300g /500g/1kg/2kg
Combined Error	≤0.005%F.S.
Non-linearity	≤0.005%F.S.
Repeatability	≤0.005%F.S.
Rated Output	1.0mV/V
Zero Balance	0.05mV/V
Insulation Resistance	≧5000MΩ/100VDC
Recommended Excitation	2~12VDC
Material	Aluminum Alloy
Safe Overload	150%F.S.
Protection Class	IP66(Customizable)
Operation Temp.	-30~80°C
Cable Size	Ф3.2x4000mm(Customizable)
Nominal Displacement	<0.05mm

Dimensions(mm)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 0

Load direction

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 1

Wiring code

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 2

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
